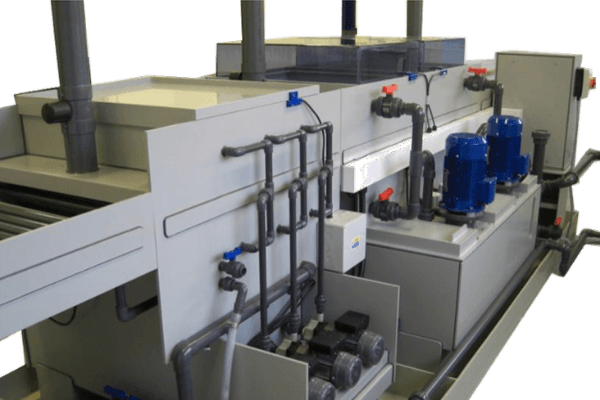

WASH:
Conveyor width:
750mm (30”)
Conveyor control:
DC shunt motor with digital readout speed control

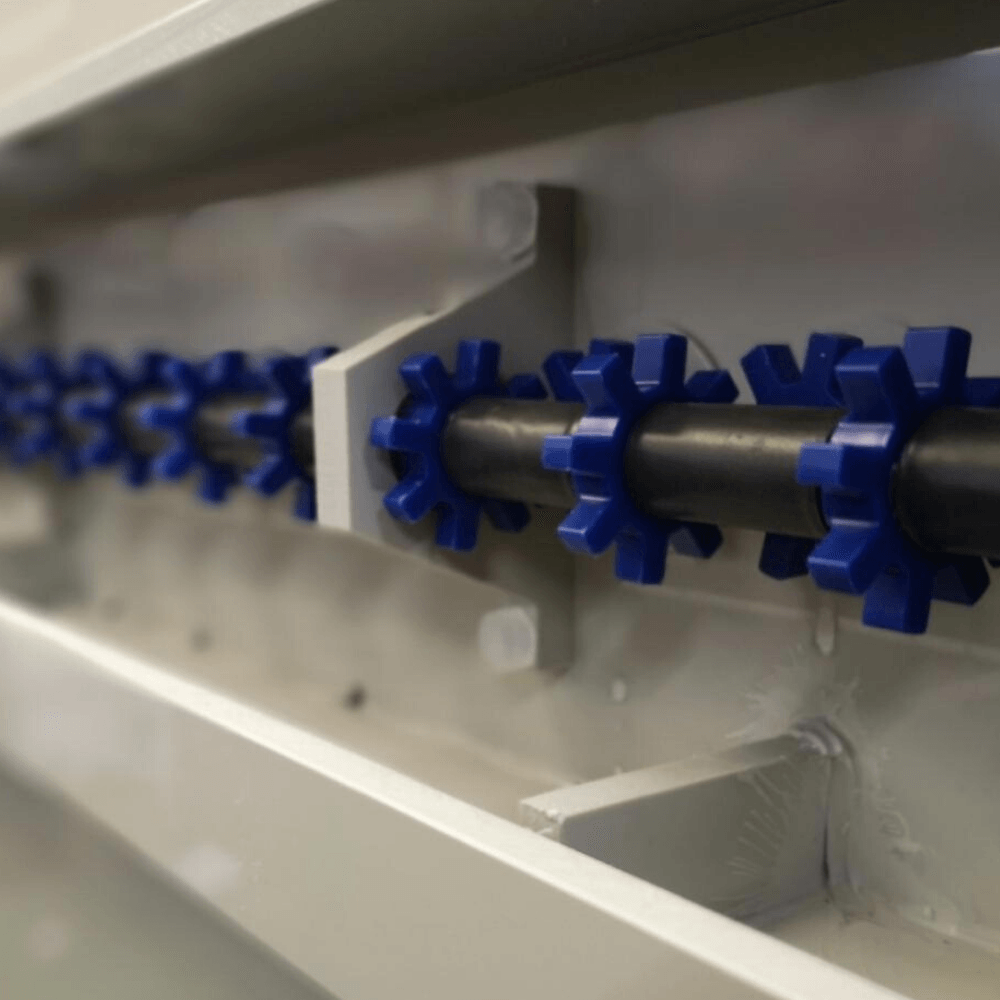

Conveyor drive:
1 to 1 polypropylene drive gears

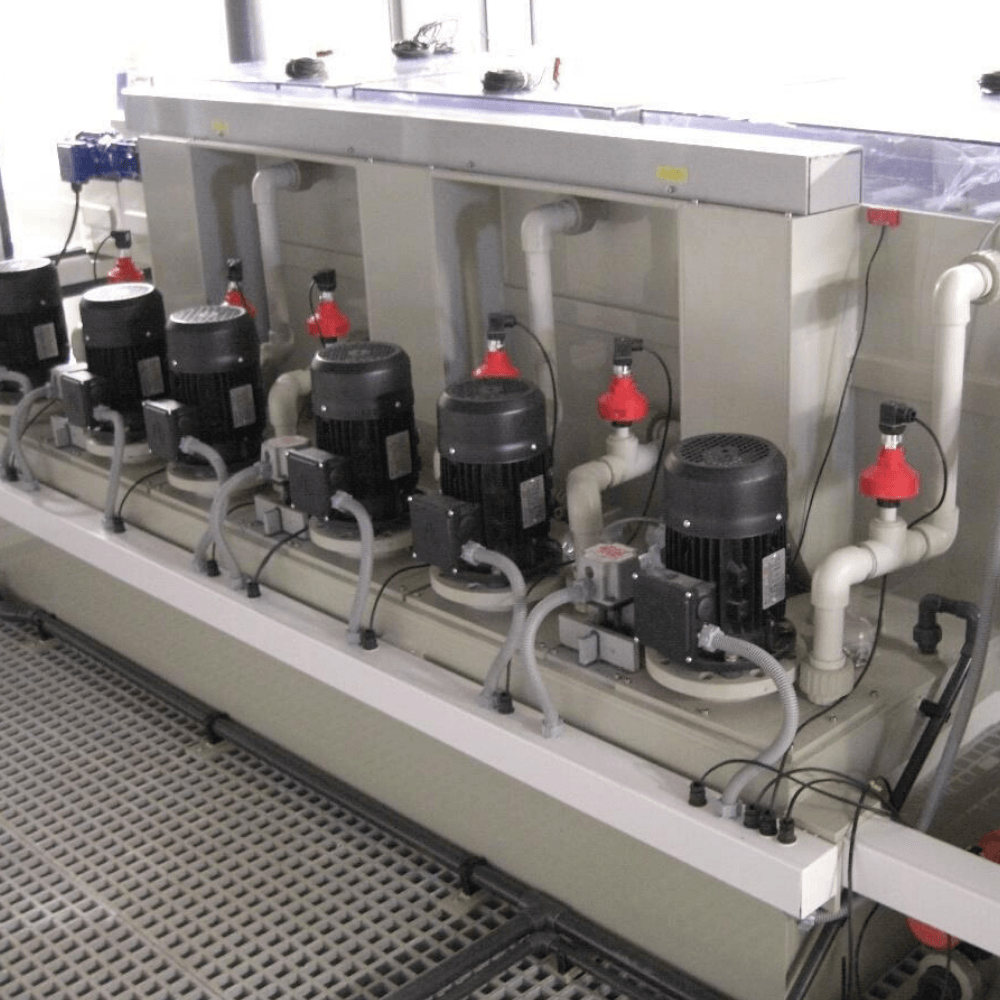

Pump:
2.2kw glandless submersible unit
Filter:
external access lift out filter baskets
Heating:
3kw titanium element
Temperature control:
Digital readout electronic thermostat

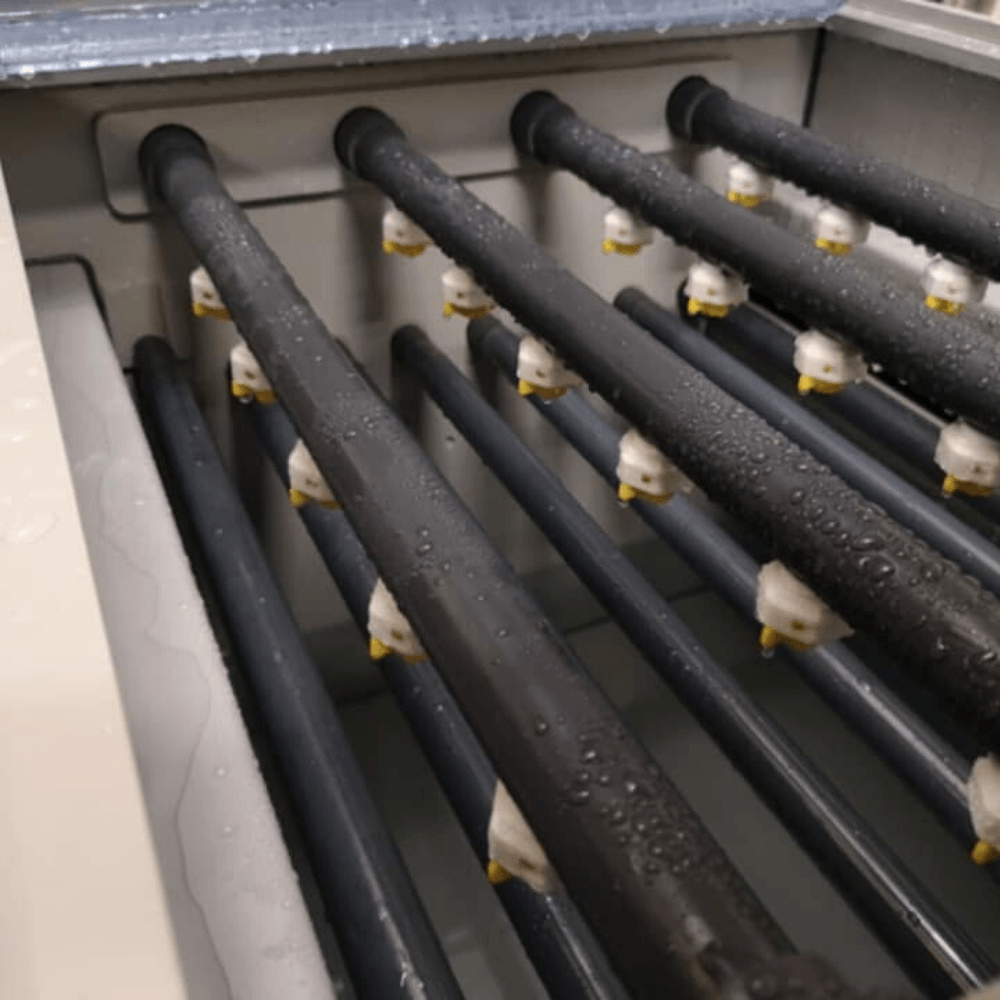

Spray banks:
6 top 6 bottom, quick release fan jets
Rinse:
2 stages, pumped and fresh
Pump:
High torque magnetic drive unit
Filter:
Lift out filter on input side of pump

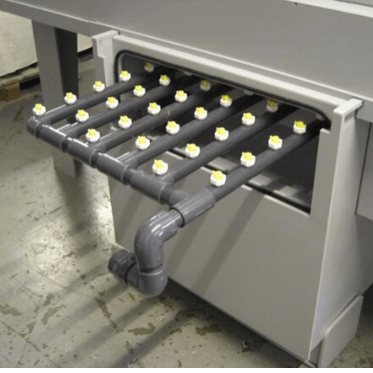

Spray bars:
Top and bottom spray bars
Fresh rinse:
Top and bottom spray bars, overflow to pumped stage
Dimensions:
Length 1500 (60”)
Width 1200mm (48”)
Height 1200 (47”)
Services:
3 phase, ½” water in, 1 ½” drain
Safety:
☑
Low liquid level cut outs
☑
Chamber access door interlocks
☑
Emergency stop switch to each end of line
